Deep learning is one of the most exciting artificial intelligence topics. It's a family of algorithms loosely based on a biological interpretation that have proven astonishing results in many areas: computer vision, natural language processing, speech recognition and more.

Over the past five years, deep learning expanded to a broad range of industries.

Many recent technological breakthroughs owe their existence to it. To name a few: Tesla autonomous cars, photo tagging systems at Facebook, virtual assistants such as Siri or Cortana, chatbots, object recognition cameras. In so many areas, deep learning achieved a human-performence level on the cognitive tasks of language understanding and image analysis.

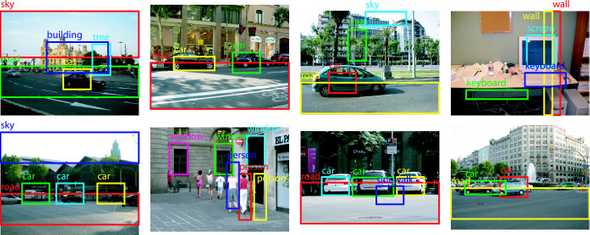

Here's an example of what deep learning algorithms are capable of doing: automatically detecting and labeling different objects in a scene.

Deep learning also became a widely mediatized tech topic.

In this article, I'll go beyond the overall hype you'd encounter in the mass media and present a concrete application of deep learning.

I'll show you how to build a deep neural network that classifies images to their categories with an accuracy of a 90%. This seemingly simple task is a very hard problem that computer scientists have been working on for years before the rose of deep networks and especially Convolutional Neural Networks (CNN).

This post is broken into 4 parts where I will:

1. Present the dataset and the use-case and explain the complexity of the image classification task
2. Go over the details about Convolutional Neural Nets. I'll explain their inner meachanisms and the reason why they are more suitable to image classification than ordinary neural netwoks

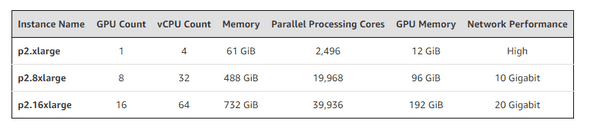

3. Set up a deep learning dedicated environment on a powerful GPU-based EC2 instance from Amazon Web Services (AWS)

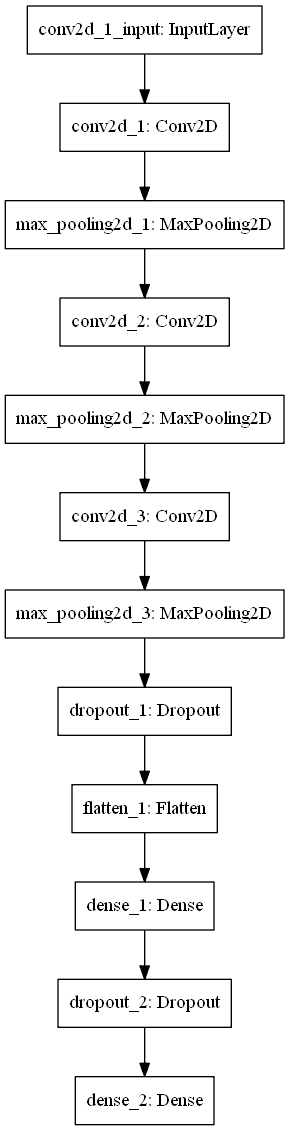

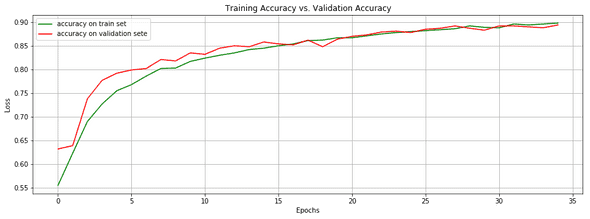

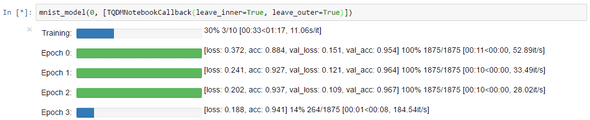

4. Train two deep learning models: one from scratch in an end-to-end pipeline using Keras and Tensorflow, and another one by using a pre-trained network on a large dataset

These parts are independent. If you're not interested in the theory you can skip part 1 and 2.

Deep learning is a challenging topic to handle. As a machine learning practitioner, I myself spent a lot of time learning about the subject. In the last part, I'll share all the material I used so that you can use it yourself and start your deep learning journey.

This article is an honest attempt to synthesize the knowledge I've developed on neural nets. So please don't hesitate to point out any mistake you come across while reading. Feel free to also discuss any point you see unclear or any thought you'd like to share.

In case you're willing to reproduce my work or send a pull request, the code of this article as well as the trained models are available in my github account

Let's get started.

1 - A fun use case: How to classify cats and dogs?

There are lots of image datasets dedicated to benchmarking deep learning models.

The one I'll be using in this article comes from the Cat vs Dogs Kaggle competition . As you've probably guessed it, it's a set of labeled images of cats and dogs.

Like in every Kaggle competition, we'll have tow folders:

• A train folder: it contains 25,000 images of dogs and cats. Each image in this folder has the label as part of the filename. We'll use it to train and validate our model.
• A test folder: it contains 12,500 images, named according to a numeric id. For each image in this dataset, one should predict a probability that the image is a dog (1 = dog, 0 = cat). In practice it's used to score the model on the Kaggle leaderboard.

As you can see, we have a variety of images. They all are in different resolutions. Cats and dogs are in different shapes, positions, colors. They may be sitting, they may not. They may be happy or sad. Cats may be sleeping, dogs may be barking. Photographs can be taken from diffrent angles with a different zoom.

An infinite number of configurations is possible. For a human, recognizing pets in a scene in a set of heterogeneous photographs comes naturally with no effort. This is however not a trivial task for a machine. In fact, automatic classification assumes to know how to robustly describe what makes a cat a cat and makes a dog a dog. This assumes to know the intrinsic features that describe each animal.

What makes deep neural networks very effective at classifying images is their ability to automatically learn multiple levels of abstraction that simply characterize each class in a given classification task. They can recognize patterns with extreme variability, and with robustness to distortions and simple geometric transformations.

Let's see how deep neural nets handle this.

2 - Fully Connected Networks vs CNNs

Many people started using Fully Connected networks to address the image classification problem. However, they came to realize that these networks are not fully optimal for the task.

Let's understand why.

2 - 1 - A Fully Connected (FC) Neural Network

Fully connected neural nets are networks where each neuron is connected to every neuron in the adjacent layers. They are the standard and typical neural network architectures. To learn more about the theory behind neural networks please refer to this link and this one: These are Andrej Karpathy's Stanford lectures and they are simply, awesome.

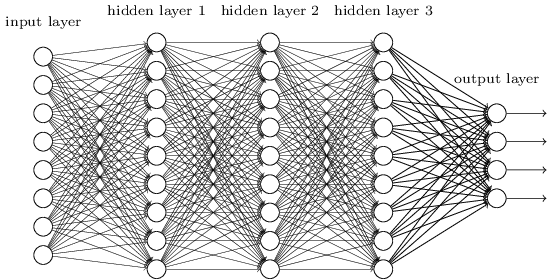

To illustrate, here's a 3-hidden layer FC neural net.

Using FC networks, images are first converted to a one dimensional vector before being fed as an input.

For example, a color image of size 256x256, which is represented by object of shape (255, 255, 3) where 3 is the number of color channels, is converted to a vector of size 256 x 256 x 3 = 196608. All we did here was rolling the image into a long vector. Each element of this vector is a pixel value.

Using a FC network on a set of 256x256 color images, we would then have:

• An input layer of size 196608 where each neuron encodes a pixel value of the image
• An output layer of size 2 where each neuron indicates the prediction for the output class
• Hidden layers and hidden neurons in between.

Fully connected networks can be very good classifiers. In the realm of supervised algorithms, they can learn complex non-linear patterns and generalize well assuming we design a robust architecture that doesn't overfit on the data.

When it comes to processing images, fully connected networks are unfortunately not the right tools.

I see two main reasons

1. Let's imagine that we have one hidden layer of 1000 hidden units for our case. 1000 is a reasonable value given the size of the input layer. With this configuration, the number of parameters (or weights) connecting our input layer to the first hidden layer is equal to 196608 x 1000 = 196608000! This is not only a huge number but the network is also not likely to perform very well given that neural networks need in general more than one hidden layer to be robust. But fair enough. Let's say that our network is very good with that one hidden layer and 1000 hidden units. Let's do the math for the memory cost. A weight is a floating value that is encoded in 8 bytes. 196698000 weights would then cost ... 1572864000 bytes which is an approximate value of ~ 1,572 GB. So we'll need 1,572 GB to store the weights of the first hidden layer only. Unless you have a lot of RAM on your laptop, this is clearly not a scalable solution.
2. With fully connected networks, we lose the spatial structure that is intrinsic to the image. In fact, after converting the image to a long vector, each pixel value is processed by the network pretty much the same as the other pixels. There is no assumption of spatial correlation between the pixels whatsoever. Each pixel has the same role. This is unfortunately a huge information loss since we lose the dependencies and the similarities between closer pixels. This is an infromation that we want to be encoded in our model.

To overcome these two limitations, a lot of work have been invested to come up with new neural network architectures that are both scalable and suitable to handle the complexity of the image data.

And that's when we came up with Convolutional Neural Networks (CNNs).

2 - 2 - Convolutional Neural Networks

Convolutional Neural Networks (or CNNs) are special kind of neural architectures that have been specifically designed to handle image data. Since their introduction by (LeCun et al, 1989) in the early 1990's, CNNs have demonstrated excellent performance at tasks such as handwritten digit classification and face detection. In the past few years, several papers have shown that they can also deliver outstanding results on more challenging visual classification tasks. Most notably (Krizhevsky et al., 2012) show record beating performance on the ImageNet 2012 classification benchmark, with their convnet model (AlexNet) achieving an error rate of 16.4% compared to the second place result of 26.1%.

CNNs are not just hype. Several factors are responsible for the renewed interest people got in them.

1. The availability of very large training datasets with millions of labeled examples. One of the most popular databases is ImageNet
2. Powerful GPU implementations, making the training of very large models practical
3. Enhanced model regularization strategies such as Dropout

CNN are powerful at the image classification task. They are, by design, a solution to the two previous limitations that are faced by FC networks.

CNNs have their own structure and properties. They look different (and we will see it) from standard FC networks but they share the same mechanisms. In both cases, we talk about hidden layers, weights, biases, hidden neurons, loss functions, backpropagation and stochastic gradient descent. Again, if you're not familiar with these concepts, I encourage you to look at Andrej Karpathy's lectures on Neural Nets.

CNNs are composed of five basic blocks: understanding them should give you a clear intuition about the global mechanism.

0. An input layer
1. Convolutional layer
2. ReLU layer
3. Pooling layer
4. Fully Connected layer

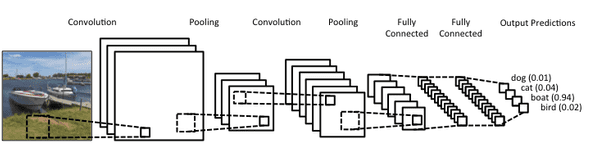

Before diving in each block, here's full CNN architecture.

As you can see, the image is processed throughout the network over many layers and the output neurons hold the predictions for each class.

Let's understand what each layer does in details.

The input layer

In fully connected networks, the inputs are depicted as vertical lines of neurons, basically vectors. Whether we process images or not, we always have to tweak our data to switch to this configuration.

In a convnet, however, when dealing with images, it helps to think about them as squares or neurons where each neuron represents a pixel value. Basically CNNs keep images as they are and don't try to squeeze them in a vector.

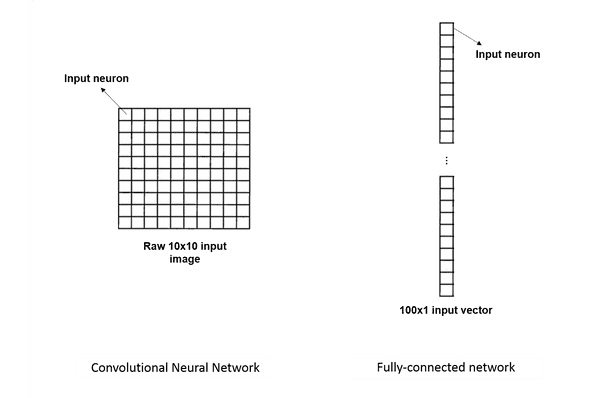

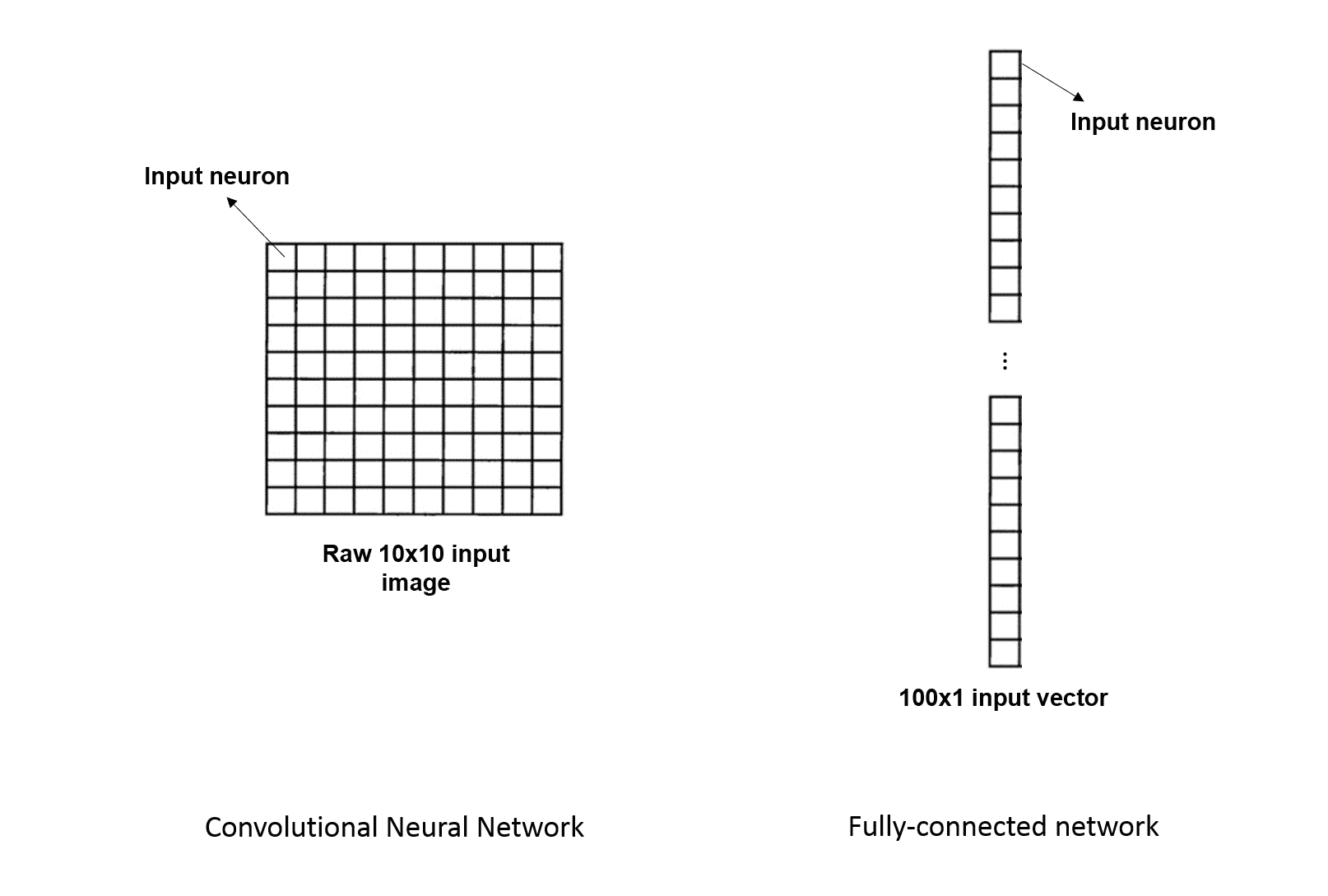

The diagram below shows the difference:

The convolutional layer

This layer is the main component of a convnet. Before explaining what it does, we must first understand the main difference between convnets and FC nets in terms of connectivity. This is a crucial idea. Let me explain:

We saw it earlier: Fully Connected Networks are literally "fully connected". Or dense, if you wish. This simply means that every neuron in a given layer is connected to all the neurons of the adjacent layers. When a multi dimensional data point flows from one layer to another, the activation of each neuron in a given layer is determined by the weights of all neurons in the previous layers. These guys all have a saying.

However, things are a bit different for CNNs. **They are not fully connected. **

This means that each neuron in a hidden layer is not connected to all neurons of the previous layer. It is rather connected to a patch (generally a small square region) of neurons in the previous layer.

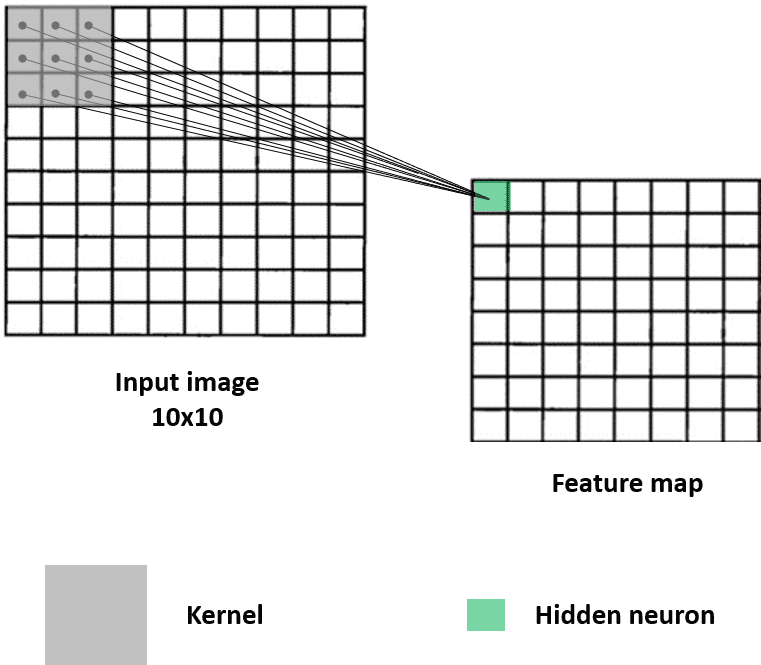

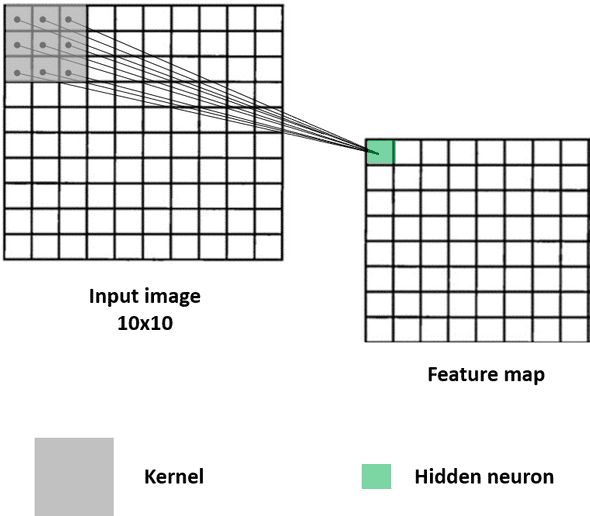

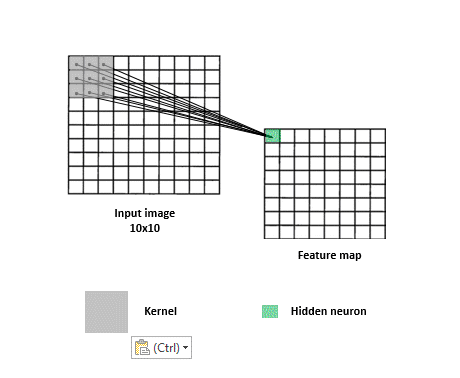

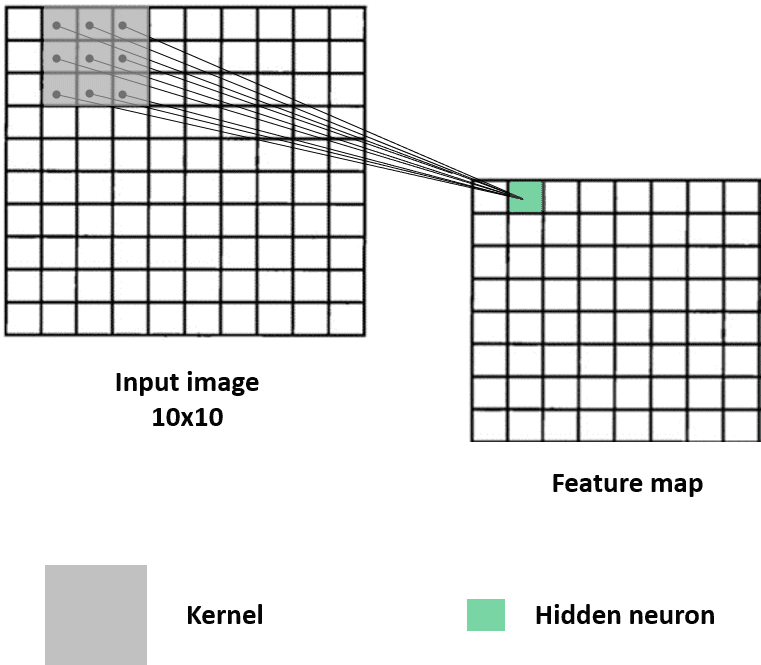

Here's an example:

In this figure, the first neuron of the first hidden layer, which we also call a feature map, is connected to a patch of 3x3 pixels in the input. This hidden neuron depends only on this small region and will ultimately, throughout the learning, capture its characteristics.

What does the value of this first hidden neuron represent? This is the result of a convolution between a weight matrix called the kernel (the little gray square) and a small region of same size in the image, called the receptive field.

The operation behind is very simple: it's an element-wise multiplication of two matrices: the 3x3 image region and the kernel of same size. The multiplications are then summed up into an output value. In this example, we have 9 multiplications that are summed into the first hidden neuron.

This neuron basically learns a visual pattern out of the receptive field. You can think of its value as a intensity that characterises the presence or not of a feature in the image.

Now what about the other hidden neurons? How are they computed?

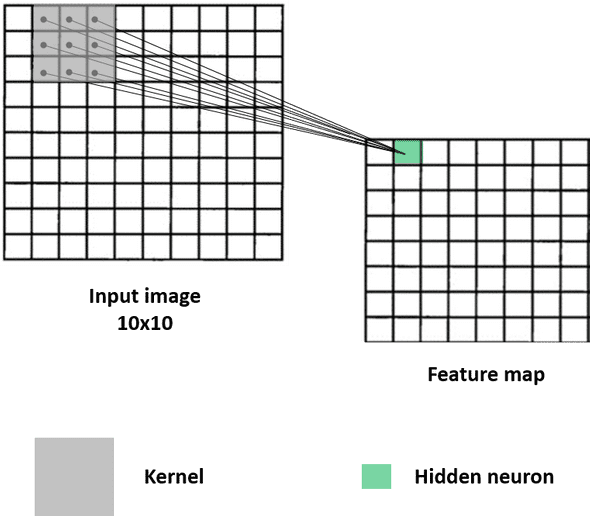

To compute the second hidden neuron, the kernel shifts by a unit (or one stride) on the input image from left to right and applies the same convolution, again with the same filter. Here's how it goes.

Ok now let's imagine that the kernel slides over the whole image making a convolution at each step and storing the outputs in the feature map. In practice, this is how it looks like.

This is what the convolution layer does: given a filter, it scans the input and generates a feature map.

But what does this convolution operation really represent? How to interpret the resulting feature map?

I started by stating that convolution layers capture visual patterns within an image. Let me illustrate this to convince you.

I'm going to load a cat image from the dataset. I'll then apply different convolutions on it, changing the kernel each time, and visualizing the results.

%matplotlib inline
from scipy.signal import convolve2d
import numpy as np
import cv2
from matplotlib import pyplot as plt

image = cv2.imread('./data/train/cats/cat.46.jpg')
# converting the image to grayscale
image = cv2.cvtColor(image, cv2.COLOR_BGR2GRAY)

I'll define a function that takes a kenel as an input, performs a convolution on the image and then plots the original image and the convolved one next to it.

The kernel is a small square matrix (gray square in the figures above).

def show_differences(kernel):
    convolved = convolve2d(image, kernel)
    fig = plt.figure(figsize=(15, 15))
    plt.subplot(121)
    plt.title('Original image')
    plt.axis('off')
    plt.imshow(image, cmap='gray')

    plt.subplot(122)
    plt.title('Convolved image')
    plt.axis('off')
    plt.imshow(convolved, cmap='gray')
    return convolved

Let's start by this filter:

It's called box blur. When this filter is applied to a pixel value in the input image, it basically takes this pixel and its 8 neighbors (that's why we have 1 everywhere) and compute their average pixel value (that's why we devide by 9).

Mathematically, this is a simple average. Visually, it results in smoothing abrupt contrast transitions that appear in the image.

Box blur is highly used in noise removal.

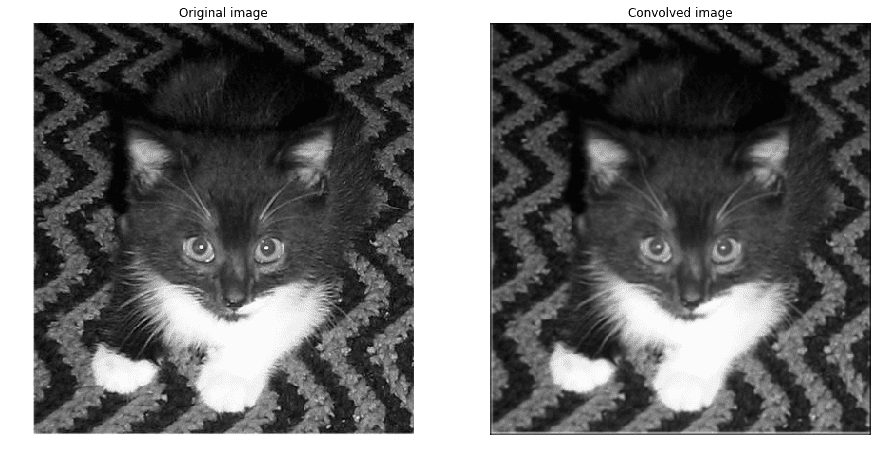

Let's apply it on a cat image and see what it does.

kernel = np.array([[1, 1, 1], [1, 1, 1], [1, 1, 1]])/9
output = show_differences(kernel)

If you closely look at the convolved image, you'll notice that it's smoother, with less white pixels (noise) sprinkled on it.

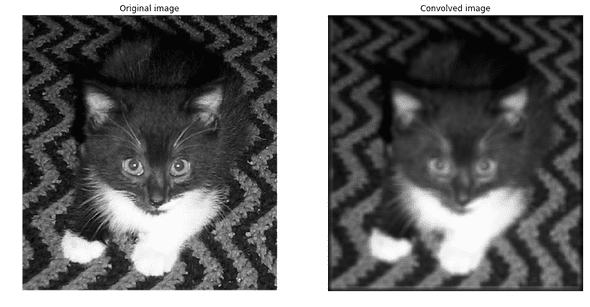

Now let's look at a more agressive bluring filter:

kernel = np.ones((8,8), np.float32)/64
dx = show_differences(kernel)

Some filters are used to capture intrinsic image details like edges.

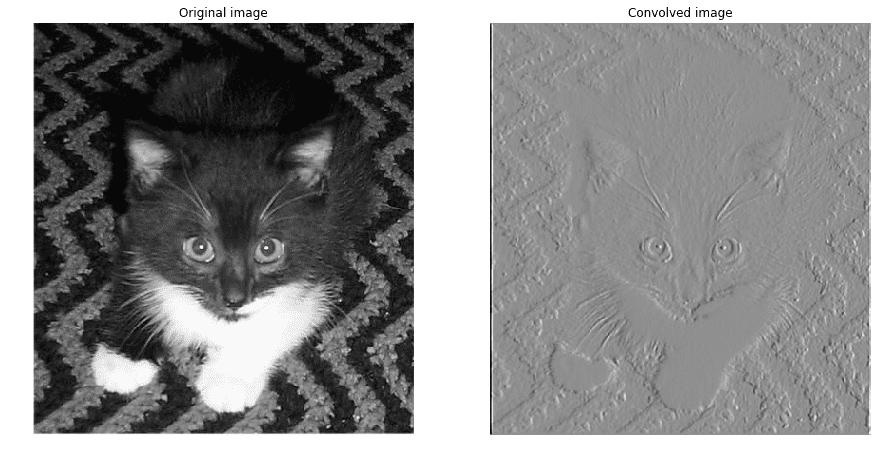

Here is one example that computes an approximation of the vertical changes in the image A.

kernel = np.array([[-1, 0, 1], [-2, 0, 2], [-1, 0, 1]], np.float32)
dx = show_differences(kernel)

The white areas are the ones that better respond to the filter, indicating the presence of a vertical edge. Look closely at the cat's left ear for example and notice how its edge is captured.

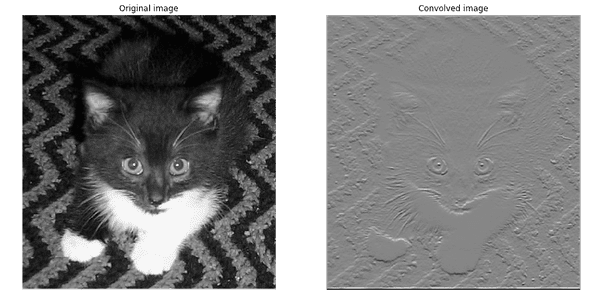

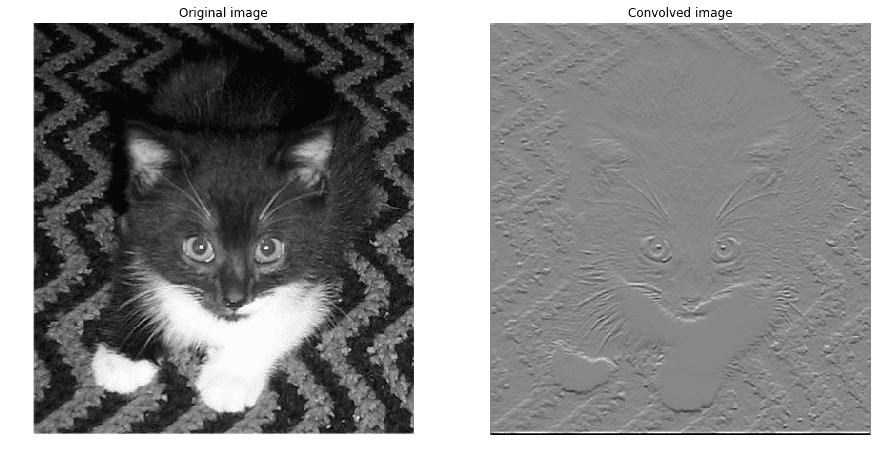

Cool, right? Here is a second filter that does the same operation but for the horizontal changes.

kernel = np.array([[1, 2, 1], [0, 0, 0], [-1, -2, -1]], np.float32)
dy = show_differences(kernel)

Notice how the whiskers are detected.

The two previous filters are gradient operators. They allow, to some extent, to reveal an inherent structure in the image with respect to a direction.

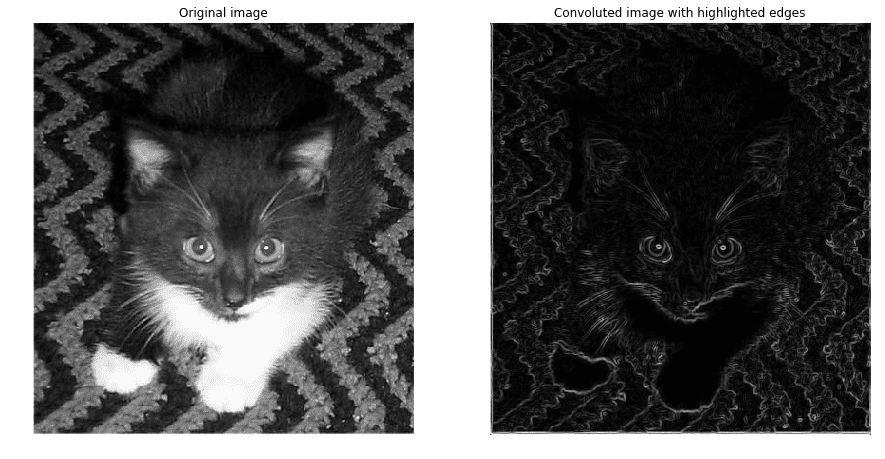

However, when Gx and Gy are combined in the following formula:

they allow an even better edge detection.

mag = np.hypot(dx, dy)  # magnitude
mag *= 255.0 / np.max(mag)  # normalize (Q&D)

fig = plt.figure(figsize=(15, 15))
plt.subplot(121)
plt.title('Original image')
plt.axis('off')
plt.imshow(image, cmap='gray')

plt.subplot(122)
plt.title('Convoluted image with highlighted edges')
plt.axis('off')
plt.imshow(mag, cmap='gray')

This is called a Sobol filter. It's a non-linear combination of two simple convolutions. We'll see later that convolution layers are capable of aggregating multiple feature maps in a non-linear fashion and therefore allowing results such that this edge detection.

There are more advanced and exotic filters out there. For additional information you can refer to this wikipedia link .

We now understand what a convolution layer does in a convnet: it generates a convolved output that responds to a visual element existing in the input. The output may be of reduced size, and you can think of it as a condensed version of the input regarding a specific feature.

The kernel determines which feature the convolution is looking for. It plays the role of the feature detector. We can think of many filters that could detect edges, semi circles, corners, etc.

More than one filter on a convolution layer?

In a typical CNN architecture, we won't have one single filter per convolution layer. Sometimes we'll have 10, 16 or 32. Sometimes more. In this case we'll be performing as many convolutions per layer as the number of filters. The idea is to generate different feature maps, each locating a specific simple characteristic in the image. The more filters we have, the more intrinsic details we extract.

Keep in mind that these simple characteritics we extract are later combined in the network to detect more complex patterns.

What about filter weights? How to choose them?

We won't handcraft filter weights based on a domain knowledge we may have about the dataset.

In practice, when training CNNs we won't be setting the filter weights manually. These values are learnt by the network. Automatically. Do you recall how weights are learnt in a typical fully connected network via backpropagation? Well, convnets do the same thing.

Instead of large weight matrices per layer, CNNs learn filter weights. In other words, this means that the network, when adjusting its weights (from random values) to decrease the classification errors, comes up with the right filters that are suitable for characterising the object we're interested in. This is a powerful idea that reverse-engineers the vision process.

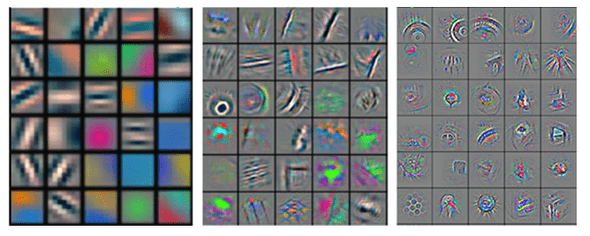

I find convnets both impressive and mysterious. Here's an example of the first three features map being learnt in a convnet. (A famous one, called AlexNet)

Note how complex the features get from simple edges to more bizarre shapes.

Weight sharing?

A feature map is produced by one and only one filter, i.e. all the hidden neurons "share" the same weights because the same filter is producing them all. That's what we call weight sharing. It's a property that makes CNNs faster to train by drastically reducing the number of learnt parameters.

In addition to speeding up training, the concept of weight sharing is motivated by the fact that a visual pattern can appear in different regions of an image many times and thus having a single filter that detect it over the whole image makes sense.

ReLU layer

Once the feature maps are extracted from the convolution layer, the next step is to move them to a ReLU layer. ReLU layers are usually coupled with conv layers. They usually work together.

A ReLU layer applies an elemetwise ReLU function on the feature map. This basically sets all negative pixels to 0. The output of this operation is called a rectified feature map.

ReLU layers have two main advantages:

• They introduce a non-linearity in the network. In fact, all operations seen so far: convolutions, elementwise matrix multiplication and summation are linear. If we don't have a non linearity, we will end up with a linear model that will fail in the classification task.
• They speed up the training process by preventing the vanishing gradient problem.

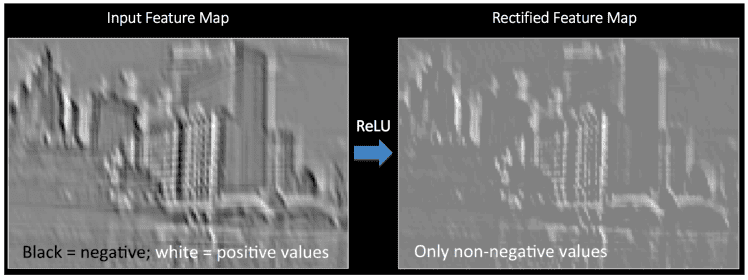

Here's a visualization of what the ReLU layer does on an image example:

Pooling layer

The rectified feature maps now go throught a pooling layer. Pooling is a down-sampling operation that reduces the dimensionality of the feature map.

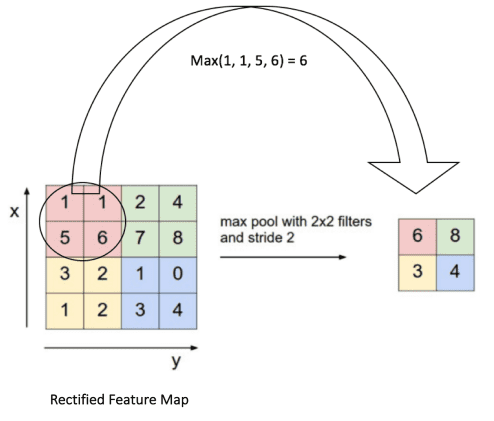

The most common pooling operation is max-pooling. It involves a small window of usally size 2x2 which slides by a stride of 2 over the rectified feature map and takes the largest element at each step.

For example a 10x10 rectified feature map is converted to a 5x5 output.

Max-pooling has many benefits:

• It reduces the size of the rectified feature maps and the number of trainable parameters, thus controlling overfitting
• It condenses the feature maps by retaining the most important features
• It makes the network invariant to small transformations, distortions and translations in the input image (a small distortion in input will not change the output of Pooling – since we take the maximum value in a local neighborhood)

The intuition behind max-pooling is not straightforward. From my understanding, I schematize this as follow:

If a feature (an edge for instance) is detected, say on small portion of an image like the 2x2 red square above, we don't care what exact pixels made it appear. Instead, we pick from this portion the one with the largest value and assume that it's this pixel that summarizes the visual feature. This approach seems aggressive since it loses the spatial information. But the fact is, it's really efficient and works very well in practice. In fact you shouldn't have in mind a 4x4 image example like this. When max-pooling is applied to a relatively high resolution image, the main spatial information still remains. Only uninportant details vanish. This is why max pooling prevents overfitting. It makes the network concentrate on the most relevant information of the image.

Fully-connected layer

CNNs also have a fully connected layer. You the one we are used to see in typical FC nets. It usually comes at the end of the network where the last pooled layer is flattened into a vector that is then fully connected to the output layer which is the prediction vector (its size is the number of classes).

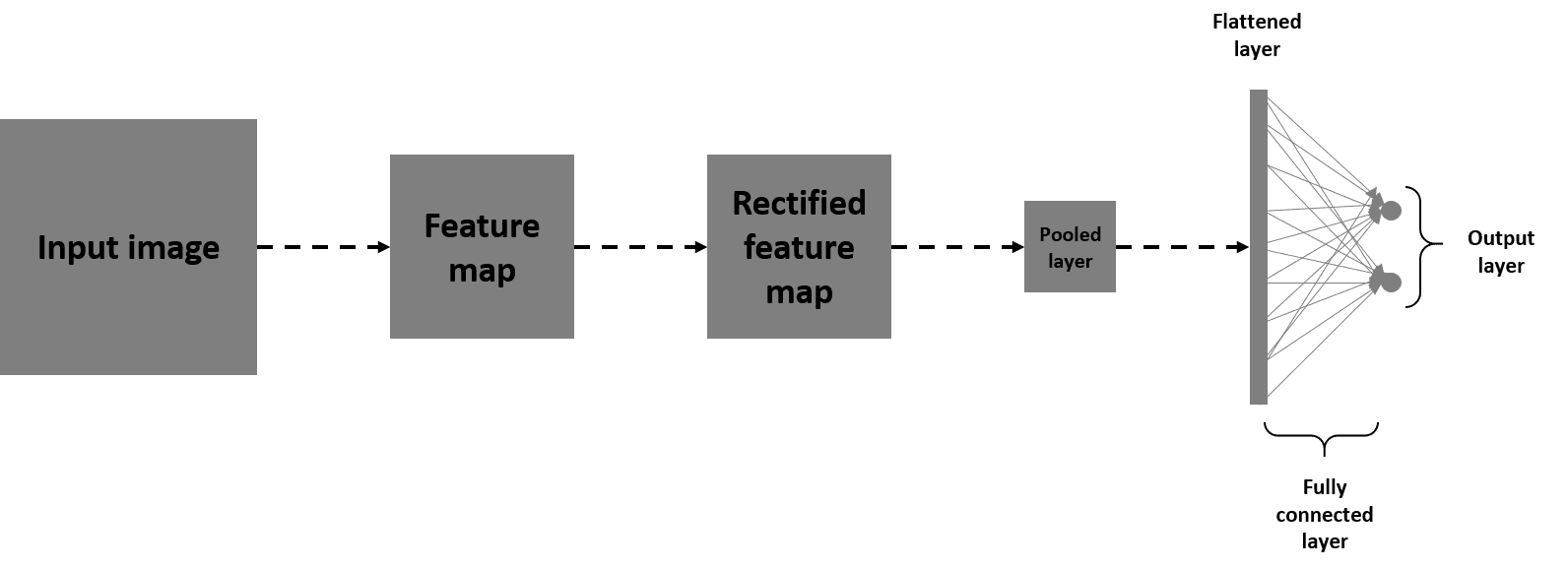

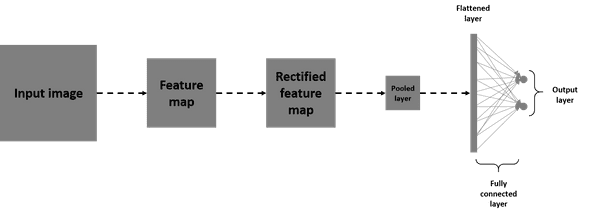

If you still have the whole picture in mind (Input -> Convolution -> ReLU -> Max pooling) now add up a fully connected layer to the output and you'll have a complete and tiny convnet that assembles the basic blocks.

This may look like this:

Note that the flattened layer is just a vectorized version of the pooled layer just before it.

Why do we need a fully connected layer?

Fully connected layer(s) play the role of the classification task, whereas the previous layers act as the feature extractors.

Fully connected layers take the condensed and localized results of convolutions, recitification and pooling and integrate them, combine them and perform the classification.

Apart from classification, adding a fully-connected layer is also a way of learning non-linear combinations of these features. Most of the features from convolution and pooling layers may be good for the classification task, but combinations of those features might be even better.

Think of the FC layer as an additional level of abstraction that adds up to the network.

Wrap up

Let's recap the layers what we've seen so far:

In a typical CNN architecture, there won't be one layer of each type.

In fact, if you consider the example of a network that has two sucessive convolutional-pooling layers, the idea is that the second convolution takes a condensed version of the image which indicates a presence or not of a particular feature. So you can think of the second conv layer as having as input a version of the original input image. That version is abstracted and condensed, but still has a lot of spatial structure.

We usually have 2 or 3 FC layers too. This allows to learn many non-linear combinations of features before proceeding to the classification task.

Let me quote Andrej Karpathy on this point:

The most common form of a ConvNet architecture stacks a few CONV-RELU layers, follows them with POOL layers, and repeats this pattern until the image has been merged spatially to a small size. At some point, it is common to transition to fully-connected layers. The last fully-connected layer holds the output, such as the class scores. In other words, the most common ConvNet architecture follows the pattern:

INPUT -> [[CONV -> RELU]N -> POOL?]M -> [FC -> RELU]*K -> FC

Now that we know the basic blocks of a convnet, let's look at a typical network.

LeNet5

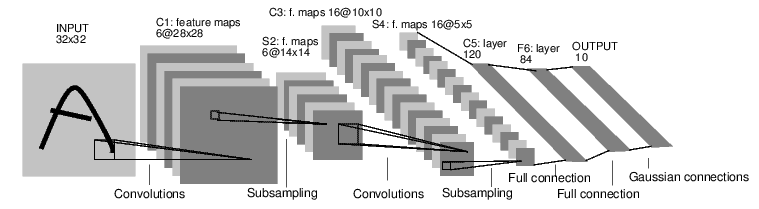

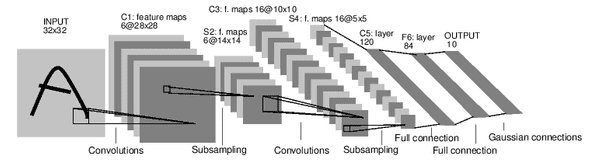

Below is a popular convnet, designed by LeCun et al. in 1998. It's called LeNet5.

Let's tell this network architecture. I encourage you to first do this exercice by yourself.

• Input layer: a 32x32 grayscale image (1 color channel)
• Convolution layer n°1: it applies 6 different 5x5 filters on the image. This results in 6 feature maps of size 28x28 (the activation function in applied in this layer on the 6 feature maps, it was not ReLU back then)
• Pooling layer on the 6 28x28 feature maps resulting in 6 14x14 pooled feature maps (1/4 the size)
• Convolution layer n°2: it applies 16 different 5x5 filters on the 6 14x14 previous feature maps. This generates 16 feature maps of size 10x10. Each of these 16 feature maps is the sum of the six matrices that are the results of convolution between the first filter and the six inputs
• Pooling layer on the 16 10x10 feature map resulting in 16 5x5 pooled maps
• A first fully connected layer containing 120 neurons. Each neurons is connected to all the pixels of the 16 5x5 feature maps. This layer has 16x5x5x120=48000 learnable weights
• A second fully connected layer containing 84 neurons. This layer is fully connected to the previous one. It has 120x84=10080 learnable weights.
• A fully connected layer to the output layer. 84x10=840 learnable weights.

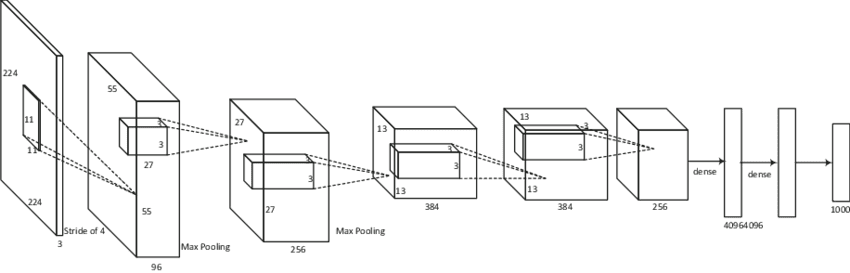

More advanced CNN architectures

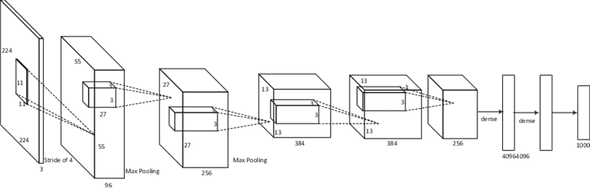

If you're interested in more complex and state of the art convnets architectures, you can read about them in this blog.

Below a popular CNN that won the 2012 ImageNet competition (AlexNet).

3 - Setting up a deep learning environment

Deep learning is computationally very heavy. You'll figure this out when you'll prototype your first model on your laptop.

However, the training can be drastically sped up when you use Graphics Processing Units (GPUs). The reason is that GPUs are very efficient at paralellizing tasks such as matrix mutliplications. And since neural nets are all about matrix multiplications, the performence in incredibly boosted.

I don't have a powerful GPU on my laptop. So I used a virtual machine on Amazon Web Services (AWS). It's called p2.xlarge and is part of Amazon EC2 instances. It has an Nvidia GPU with 12GB of video memory, 61GB of RAM, 4vCPU and 2,496 CUDA cores. It's a powerful beast and it costs $0.9 per hour.

There are of course more powerful instances but for the given task we're tackling, a p2.xlarge is more than enough.

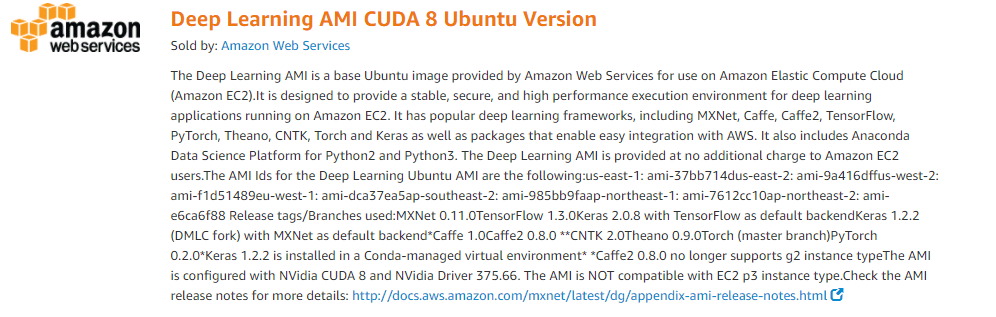

I started this instance on the Deep Learning AMI CUDA 8 Ubuntu Version. Here to know more about it.

It's basically a setting of an Ubuntu 16.04 server that encapsulates all the deep learning frameworks needed (Tensorflow, Theano, Caffe, Keras) as well as the GPU drivers (which I heard are a nightmare to install...)

This is great: AWS provides with you with powerful instances and ready-to-use Deep learning dedicated environments so that you can start working on your projects really fast.

If you're not familiar with AWS you can look at these two posts:

• https://blog.keras.io/running-jupyter-notebooks-on-gpu-on-aws-a-starter-guide.html
• https://hackernoon.com/keras-with-gpu-on-amazon-ec2-a-step-by-step-instruction-4f90364e49ac

They should get you started to:

• Set up an EC2 VM and connect to it
• Configure the network security to access jupyter notebook remotely

4 - Building a cat/dog classifier using Tensorfow and Keras

The environment is now set up. We're ready to put in practice what we've learnt so far and build a convnet that classifies images of cats and dogs.

We're going to use the Tensorflow deep learning framework and Keras.

Keras is a high-level neural networks API, written in Python and capable of running on top of TensorFlow, CNTK, or Theano. It was developed with a focus on enabling fast experimentation. Being able to go from idea to result with the least possible delay is key to doing good research.

4 - 1 - Builiding a convnet from scratch

In this first section, we'll setup an end-to-end pipeline to train a CNN. We'll go through data preparation and augmentation, architecture design, training and validation. We'll plot the loss and accuracy metrics on both the train and validation set: this will allow us to assess the improvement of the model over the training.

Data preparation

The first thing to do before starting is to download and unzip the train dataset from Kaggle.

%matplotlib inline
from matplotlib import pyplot as plt
from PIL import Image
import numpy as np
import os
import cv2
from tqdm import tqdm_notebook
from random import shuffle
import shutil
import pandas as pd

We must now organize the data so that it's easily processed by keras.

We'll create a data folder in which we'll have in two subfolders:

• train
• validation

Each of them will have 2 folders:

• cats
• dogs

At the end we'll have the following structure:

This structure will allow our model to know from which folder to fetch the images as well as their labels for either training or validation.

Here's a function that allows you to construct this file tree. It has two parameters: the total number of images n and the ratio of validation set r.

def organize_datasets(path_to_data, n=4000, ratio=0.2):
    files = os.listdir(path_to_data)
    files = [os.path.join(path_to_data, f) for f in files]
    shuffle(files)
    files = files[:n]

    n = int(len(files) * ratio)
    val, train = files[:n], files[n:]


    shutil.rmtree('./data/')
    print('/data/ removed')

    for c in ['dogs', 'cats']:
        os.makedirs('./data/train/{0}/'.format(c))
        os.makedirs('./data/validation/{0}/'.format(c))

    print('folders created !')

    for t in tqdm_notebook(train):
        if 'cat' in t:
            shutil.copy2(t, os.path.join('.', 'data', 'train', 'cats'))
        else:
            shutil.copy2(t, os.path.join('.', 'data', 'train', 'dogs'))

    for v in tqdm_notebook(val):
        if 'cat' in v:
            shutil.copy2(v, os.path.join('.', 'data', 'validation', 'cats'))
        else:
            shutil.copy2(v, os.path.join('.', 'data', 'validation', 'dogs'))

    print('Data copied!')

I used:

• n : 25000 (the entire dataset)
• r : 0.2

ratio = 0.2
n = 25000
organize_datasets(path_to_data='./train/', n=n, ratio=ratio)

Let's load Keras and its dependencies.

import keras
from keras.preprocessing.image import ImageDataGenerator
from keras_tqdm import TQDMNotebookCallback
from keras.models import Sequential
from keras.layers import Dense
from keras.layers import Dropout
from keras.layers import Flatten
from keras.constraints import maxnorm
from keras.optimizers import SGD
from keras.layers.convolutional import Conv2D
from keras.layers.convolutional import MaxPooling2D
from keras.utils import np_utils
from keras.callbacks import Callback

Using TensorFlow backend.

Image generators and data augmentation

When training a model, we're not going to load the entire dataset in memory. This won't be efficient, especially if you use your local machine.

We're going to use the ImageDataGenerator class. It allows you to indefinitely stream the images by batches from the train and validation folders. Every batch flows through the network, makes a forward-prop, a back-prop then a parameter updates (along with the test on the validation data). Then comes the next batch and does the same thing, etc.

Inside the ImageDataGenerator object, we're going to introduce random modifications on each batch. It's a process we call data augmentation. It allows to generate more data so that our model would never see twice the exact same picture. This helps prevent overfitting and makes the model generalize better.

We'll create two ImageDataGenerator objects.

train_datagen for the training set and val_datagen one for the validation set. The two of them will apply a rescaling on the image, but the train_datagen will introduce more modifications.

batch_size = 32

train_datagen = ImageDataGenerator(rescale=1/255.,
                                    shear_range=0.2,
                                    zoom_range=0.2,
                                    horizontal_flip=True
                                    )
val_datagen = ImageDataGenerator(rescale=1/255.)

From the two previous objects we're going to create two file generators:

• train_generator
• validation_generator

Each one generates, from its directory, batches of tensor image data with real-time data augmentation. The data will be looped over (in batches) indefinitely.

train_generator = train_datagen.flow_from_directory(
        './data/train/',
        target_size=(150, 150),
        batch_size=batch_size,
        class_mode='categorical')

validation_generator = val_datagen.flow_from_directory(
        './data/validation/',
        target_size=(150, 150),
        batch_size=batch_size,
        class_mode='categorical')

# Found 20000 images belonging to 2 classes.
# Found 5000 images belonging to 2 classes.

Model architecture

I'll use a CNN with three convolution/pooling layers and two fully connected layers.

The three conv layers will use respectively 32, 32 and 64 3x3 filters.

I used dropout on the two fully connected layers to prevent overfitting.

model = Sequential()

model.add(Conv2D(32, (3, 3), input_shape=(150, 150, 3), padding='same', activation='relu'))
model.add(MaxPooling2D(pool_size=(2, 2)))

model.add(Conv2D(32, (3, 3), padding='same', activation='relu'))
model.add(MaxPooling2D(pool_size=(2, 2)))

model.add(Conv2D(64, (3, 3), activation='relu', padding='same'))
model.add(MaxPooling2D(pool_size=(2, 2)))

model.add(Dropout(0.25))
model.add(Flatten())
model.add(Dense(64, activation='relu'))
model.add(Dropout(0.5))
model.add(Dense(2, activation='softmax'))

I used the stochastic gradient descent optimizer with a learning rate of 0.01 and a momentum of 0.9.

Since we're having a binary classification, I used the binary crossentropy loss function.

epochs = 50
lrate = 0.01
decay = lrate/epochs
sgd = SGD(lr=lrate, momentum=0.9, decay=decay, nesterov=False)
model.compile(loss='binary_crossentropy', optimizer=sgd, metrics=['accuracy'])

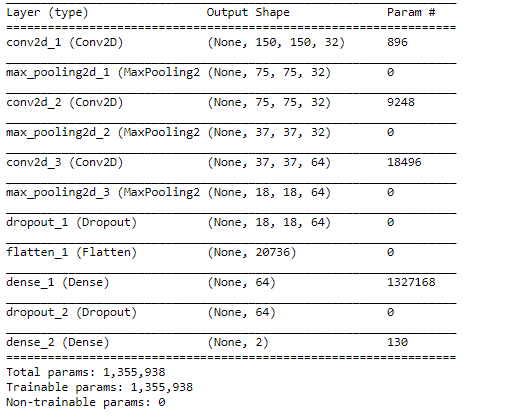

Keras provides a convenient method to display a summary of the model. For each layer, this shows up the output shape and the number of trainable parameters.

This a sanity check before starting fitting the model.

model.summary()

Let's look at the network architecture:

Visualizing the architecture

Training the model

Before training the model, I defined two callback functions that will be called while training.

• One for early stopping the training when the loss function stops improving on the validation data
• One for storing the validation loss and accuracy of each epoch: this allows to plot the training error

## Callback for loss logging per epoch
class LossHistory(Callback):
    def on_train_begin(self, logs={}):
        self.losses = []
        self.val_losses = []

    def on_epoch_end(self, batch, logs={}):
        self.losses.append(logs.get('loss'))
        self.val_losses.append(logs.get('val_loss'))

history = LossHistory()

## Callback for early stopping the training
early_stopping = keras.callbacks.EarlyStopping(monitor='val_loss',
                              min_delta=0,
                              patience=2,
                              verbose=0, mode='auto')

I also used keras-tqdm which is an awesome progress-bar that perfectly integrates with Keras.

It allows you to monitor the training of you models very easily.

What you need to do is simply load the TQDMNotebookCallback class from keras_tqdm then pass it as a third callback functions.

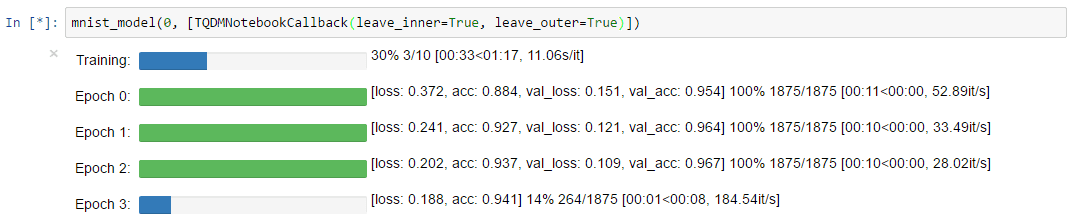

Here's what keras-tqdm looks like on simple example:

A few words about the training:

• We'll use the fit_generator method which is a variant (of the standard fit method) that takes a generator as input.
• We'll train the model over 50 epochs: over one epoch 20000 unique and augmented images will flow by batch of 32 to the network, performing a forward and back propagation and adjusting the weights with SGD. The idea of using multiple epochs is to prevent overfitting.

fitted_model = model.fit_generator(
        train_generator,
        steps_per_epoch= int(n * (1-ratio)) // batch_size,
        epochs=50,
        validation_data=validation_generator,
        validation_steps= int(n * ratio) // batch_size,
        callbacks=[TQDMNotebookCallback(leave_inner=True, leave_outer=True), early_stopping, history],
        verbose=0)

This is a heavy computation:

• If you're on your laptop this may take about 15 minutes per epoch
• If you're using an the p2.xlarge EC2 instance like me, this takes about 2 minutes or so per epoch

tqdm allows you to monitor the validation loss and accuracy on each epochs. This is useful to check the quality of your model.

Classification results

We reached 89.4% accuracy (on the validation data) in 34 epochs (training/validation error and accuracy displayed below)

This is a good result given that I didn't invest too much time designing the architecture of the network.

Now let's save the model for later use.

model.save('./models/model4.h5')

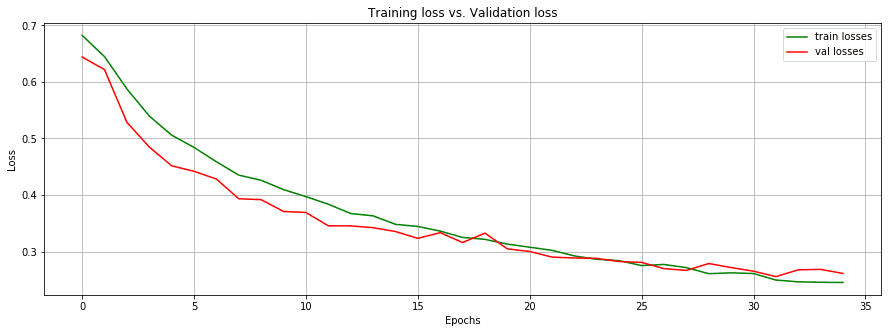

Let's plot the train and validation losses on the same graph:

losses, val_losses = history.losses, history.val_losses
fig = plt.figure(figsize=(15, 5))
plt.plot(fitted_model.history['loss'], 'g', label="train losses")
plt.plot(fitted_model.history['val_loss'], 'r', label="val losses")
plt.grid(True)
plt.title('Training loss vs. Validation loss')
plt.xlabel('Epochs')
plt.ylabel('Loss')
plt.legend()

We interrupt the training when the validation loss doesn't improve on two successive epochs.

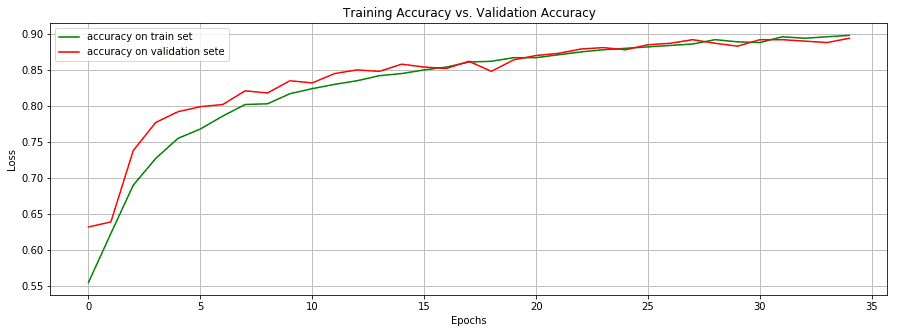

Let's now plot the accuracy on both the training set and validation set.

losses, val_losses = history.losses, history.val_losses
fig = plt.figure(figsize=(15, 5))
plt.plot(fitted_model.history['acc'], 'g', label="accuracy on train set")
plt.plot(fitted_model.history['val_acc'], 'r', label="accuracy on validation set")
plt.grid(True)
plt.title('Training Accuracy vs. Validation Accuracy')
plt.xlabel('Epochs')
plt.ylabel('Loss')
plt.legend()

These two metrics keep increasing before reaching a plateau where the model eventually starts overfitting (from epoch 34).

4 - 2 - Loading a pre-trained model

So far so good: we designed a custom convnet that performs reasonably well on the valiation data with ~ 89% accuracy.

There is however a way to get a better score: loading the weights of a pre-trained convnet on a large dataset that includes images of cats and dogs among 1000 classes. Such a network would have learnt relevant features that are relevant to our classification.

I'll load the weights of the VGG16 network: more specifically, I'm going to load the network weights up to the last conv layer. This network part acts as a feature detector to which we're going to add fully connected layers for our classification task.

VGG16 is a very large network in comparison to LeNet5. It has 16 layers with trainable weights and around 140 millions parameters. To learn more about VGG16 please refer to this pdf link.

We first start by loading the VGG16 weights (trained on ImageNet) by specifying that we're not interested in the last three FC layers.

from keras import applications
# include_top: whether to include the 3 fully-connected layers at the top of the network.
model = applications.VGG16(include_top=False, weights='imagenet')
datagen = ImageDataGenerator(rescale=1. / 255)

Now we pass the images through the network to get a feature representation that we'll input to a neural network classifier.

We do this for the training set and the validation set.

generator = datagen.flow_from_directory('./data/train/',
                                        target_size=(150, 150),
                                        batch_size=batch_size,
                                        class_mode=None,
                                        shuffle=False)

bottleneck_features_train = model.predict_generator(generator, int(n * (1 - ratio)) // batch_size)
np.save(open('./features/bottleneck_features_train.npy', 'wb'), bottleneck_features_train)

Found 20000 images belonging to 2 classes.

generator = datagen.flow_from_directory('./data/validation/',
                                        target_size=(150, 150),
                                        batch_size=batch_size,
                                        class_mode=None,
                                        shuffle=False)

bottleneck_features_validation = model.predict_generator(generator, int(n * ratio) // batch_size,)
np.save('./features/bottleneck_features_validation.npy', bottleneck_features_validation)

Found 5000 images belonging to 2 classes.

When the images are passed to the network, they are in the right orders. So we associate the labels to them easily.

train_data = np.load('./features/bottleneck_features_train.npy')
train_labels = np.array([0] * (int((1-ratio) * n) // 2) + [1] * (int((1 - ratio) * n) // 2))

validation_data = np.load('./features/bottleneck_features_validation.npy')
validation_labels = np.array([0] * (int(ratio * n) // 2) + [1] * (int(ratio * n) // 2))

Now we design a small fully connected network that plugs in to the features extracted from the VGG16 and acts as the classification part of a CNN.

model = Sequential()
model.add(Flatten(input_shape=train_data.shape[1:]))
model.add(Dense(512, activation='relu'))
model.add(Dropout(0.5))
model.add(Dense(256, activation='relu'))
model.add(Dropout(0.2))
model.add(Dense(1, activation='sigmoid'))

model.compile(optimizer='rmsprop',
              loss='binary_crossentropy', metrics=['accuracy'])

fitted_model = model.fit(train_data, train_labels,
          epochs=15,
          batch_size=batch_size,
          validation_data=(validation_data, validation_labels[:validation_data.shape[0]]),
          verbose=0,
          callbacks=[TQDMNotebookCallback(leave_inner=True, leave_outer=False), history])

We reached 90.7% accuracy on 15 epochs only. Quite not bad.

Note that each epoch takes around 1 minute on my personal laptop.

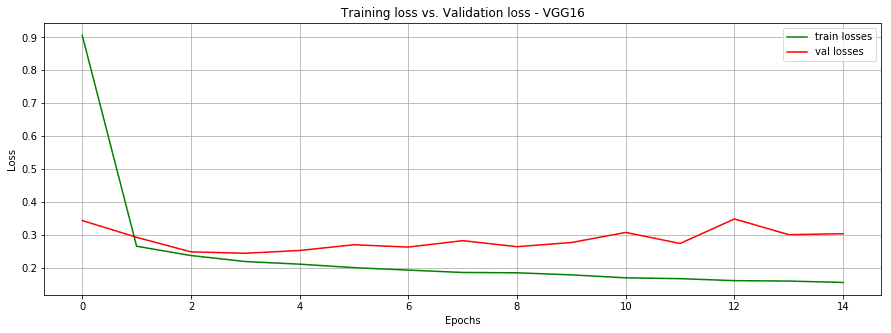

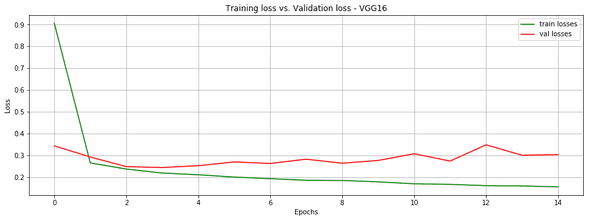

fig = plt.figure(figsize=(15, 5))
plt.plot(fitted_model.history['loss'], 'g', label="train losses")
plt.plot(fitted_model.history['val_loss'], 'r', label="val losses")
plt.grid(True)
plt.title('Training loss vs. Validation loss - VGG16')
plt.xlabel('Epochs')
plt.ylabel('Loss')
plt.legend()

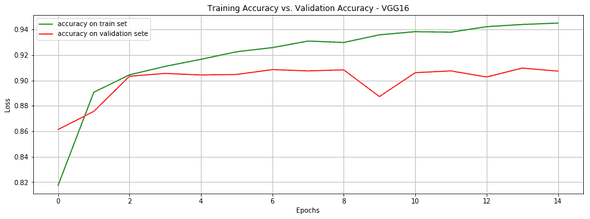

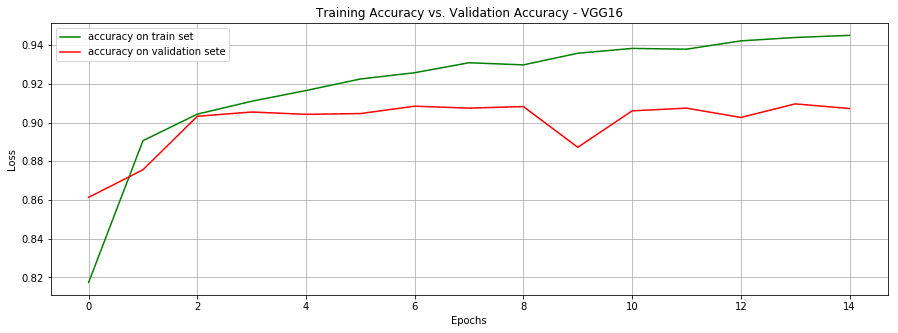

fig = plt.figure(figsize=(15, 5))
plt.plot(fitted_model.history['acc'], 'g', label="accuracy on train set")
plt.plot(fitted_model.history['val_acc'], 'r', label="accuracy on validation sete")
plt.grid(True)
plt.title('Training Accuracy vs. Validation Accuracy - VGG16')
plt.xlabel('Epochs')
plt.ylabel('Loss')
plt.legend()

Many deep learning pioneers encourage to use pre-trained networks for classification tasks. In fact, this usually leverages the training of a very large network on a very large dataset.

Keras allows you easliy to download pretrained networks like VGG16, GoogleNet and ResNet. More about this here.

Where to go from here ?

If you're interested in improving a custom CNN:

• On the dataset level, introduce more data augmentation
• Play with the network hyperparameters: number of conv layers, number of filters, size of the filters. Have a validation dataset to test each combination.
• Change the optimizer or tweak it
• Try different cost functions
• Use more FC layers
• Introduce more aggressive dropout

If you're interested in having better results with pretrained networks:

• Use different network architectures
• Use more FC layers with more hidden units

If you want to do discover what the CNN model has learnt:

• Visualize feature maps. I haven't done that yet, but there's an interesting paper on the subject

If you want to use the trained model:

• Ship it in a web app and use it on new cat/dog images. This is a good exercise to see if the model generalizes well.

Conclusion

This article was an opportunity to go through the theory behind convolutional neural networks and explain each of their principal components in more details.

This was also a hands-on guide to setup a deep learning dedicated environment on AWS and develop an end-to-end model from scratch as well as an enhanced model based on a pre-trained one.

Using python for deep learning is extermely fun. Keras made it easier for preprocessing the data and building up the layers. Keep in mind that if you want someday to build custom neural net components, you'll have to switch to another framework.

I hope this gave you a practical intuition about the convnets mechanisms and a strong appetite to learn more.

Convnets are amazingly powerful. Anyone working on computer vision believes in their robustness and efficiency.

Their applications are getting a larger scope. NLP practictioners are now the ones who are switching to convnets. Here are some of their applications:

• Text classification using CNNs : link
• Automated image captioning (Image + Text): link
• Text classification at character level: link

References

Here's a list of some references I used to learn about neural nets and convnets:

1. neuralnetworksanddeeplearning.com : By far the best notes on neural networks and deep learning. I highly recommend this website to anyone who want to start learning about neural nets.
2. CS231n Convolutional Neural Networks for Visual Recognition : Andrej Karpathy's lectures at Stanford. Great mathematical focus.

3. A Beginner Guide to Understanding Neural Networks: A three-part post explaining CNNs, from the basic high level inuition to the architecture details. Very interesting read. Learnt a lot from it.

   • part 1
   • part 2
   • part 3
4. Running jupyter notebooks on GPU on AWS
5. Building powerful image classification models using very little data
6. CatdogNet - Keras Convnet Starter
7. A quick introduction to Neural Networks
8. An Intuitive Explanation of Convolutional Neural Networks
9. Visualizing parts of Convolutional Neural Networks using Keras and Cats
